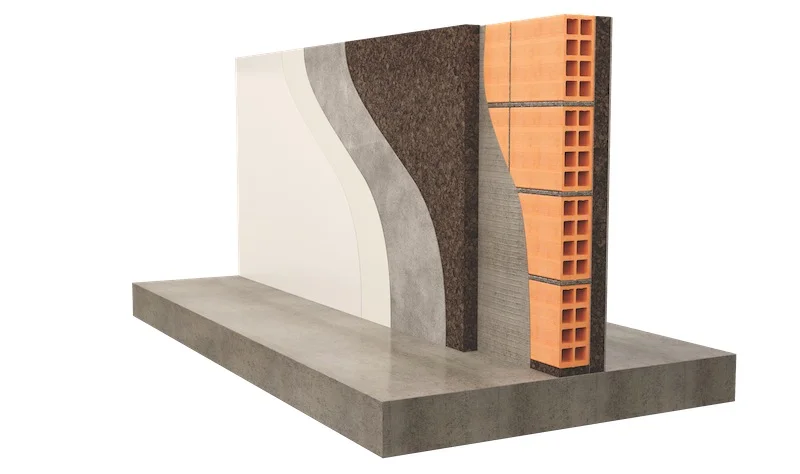

INTERNAL PARTITIONS WITH INSULATION LINED ON BOTH SIDES



SOLUTION DESCRIPTION

Acoustic insulation against airborne sound inside walls with lined ThermaCork.

THERMACORK INTERNAL PARTITIONS WITH INSULATION LINED ON BOTH SIDES


TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C

Airborne Sound Insulation Index: Rw = 50 dB
Bending Resistance: ≥ 1,8x104 kg/m2
Compression resistance at 10%: ≥ 100 KPa
Excellent dimensional stability
Fire Resistance: Class B



ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



RECOMMENDATIONS FOR APPLICATION

Apply the boards of ThermaCork over the support and plaster afterwards.

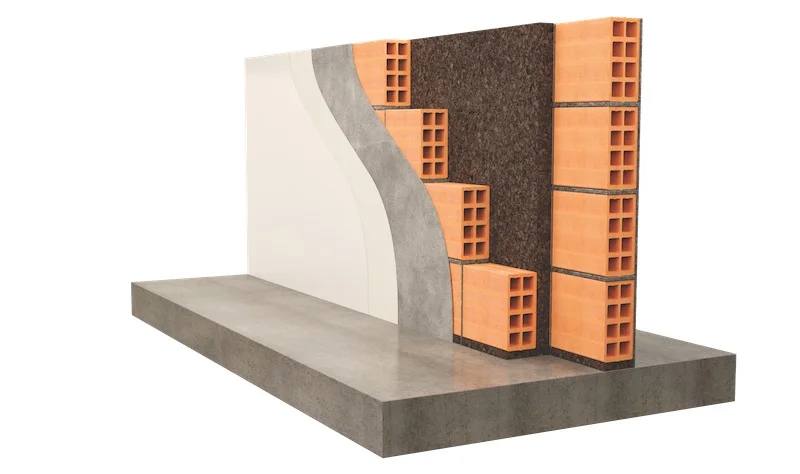

DOUBLE WALL WITH INSULATION FULLY FILLING THE CAVITY



SOLUTION DESCRIPTION

Thermal and acoustic insulation of double internal walls with ThermaCork, fully filling the cavity.

DOUBLE WALL WITH INSULATION FULLY FILLING THE CAVITY WITH THERMACORK


TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C

Airborne Sound Insulation Index: Rw (C;Ctr) = 53 (-1;-4) dB
Excellent dimensional stability
Excellent breathing capacity
Does not absorb water by capillary action
Fire Resistance: Class B



ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



RECOMMENDATIONS FOR APPLICATION

Fill the cavity between double brick walls with ThermaCork.

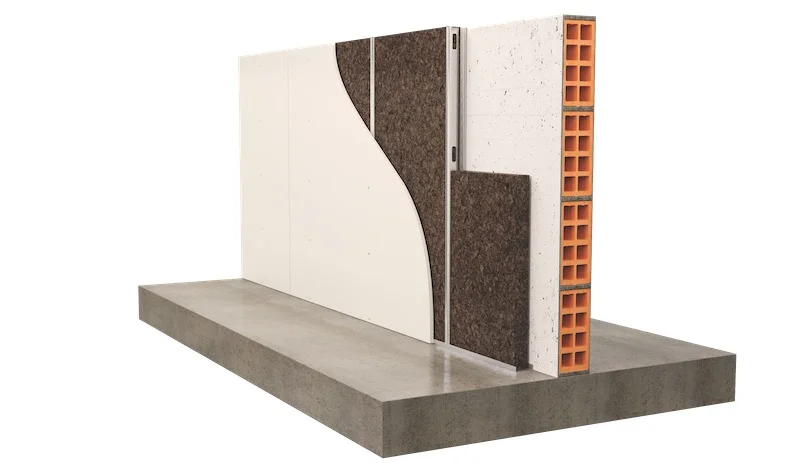

METAL STUD OVER MASONRY WALL WITH INSULATION



SOLUTION DESCRIPTION

Thermal and acoustic insulation of metal stud walls with ThermaCork, fully filling the cavity. Traditional external wall renovation system.

METAL STUD OVER MASONRY WALL WITH THERMACORK INSULATION


TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C

Airborne Sound Insulation: 50 dB to 55 dB
Compression resistance at 10%: ≥ 100 KPa
Excellent dimensional stability
Fire Resistance: Class B



ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



RECOMMENDATIONS FOR APPLICATION

Fill the cavity between masonry wall and metal stud wall with ThermaCork, transforming the structure into a sandwich panel.

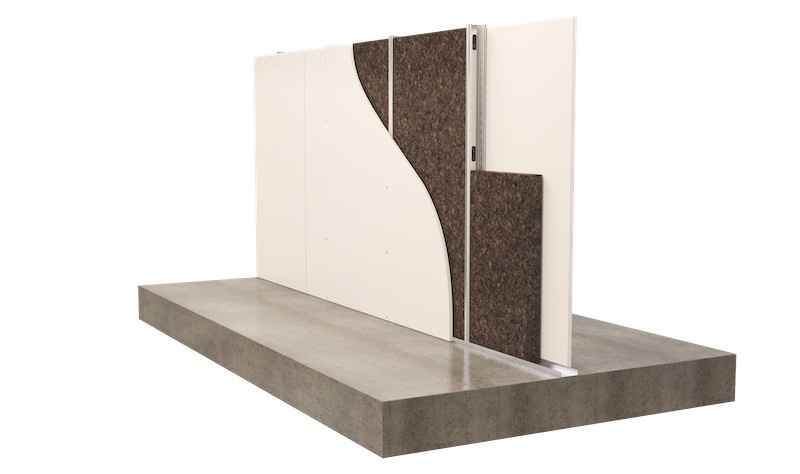

METAL STUD PARTITION WALL WITH INSULATION



SOLUTION DESCRIPTION

Thermal and acoustic insulation of metal stud walls with ThermaCork, fully filling the cavity.



METAL STUD PARTITION WALL WITH THERMACORK INSULATION

TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C

Airborne Sound Insulation: 50 dB to 55 dB
Density: 110 to 120 kg/m3
Thermal conductivity: λ = 0,037 to 0,040 W/m°C
Compression resistance at 10%: ≥ 100 KPa
Excellent dimensional stability
Fire Resistance: Class B



ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



RECOMMENDATIONS FOR APPLICATION

Fill the cavity between the metal stud walls with ThermaCork, transforming the structure into a sandwich panel.

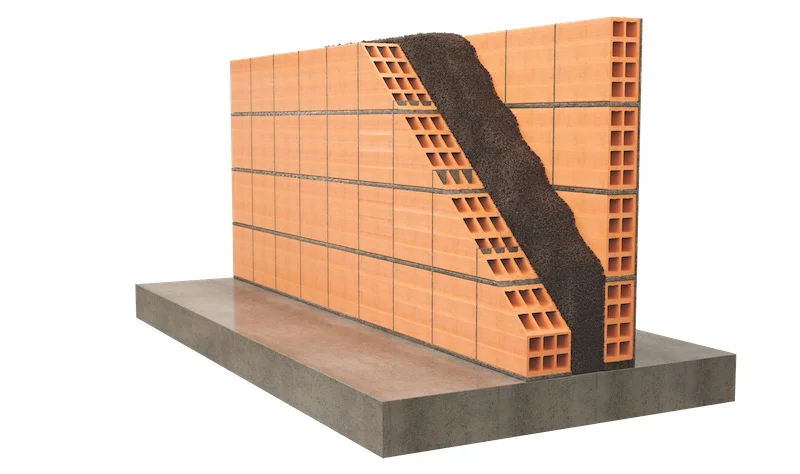

FILLING THE INTERNAL DOUBLE WALLS WITH EXPANDED CORK GRANULES



SOLUTION DESCRIPTION

Thermal and acoustic insulation of double internal walls with ThermaCork Granules, fully filling the cavity.



FILLING THE INTERNAL DOUBLE WALLS WITH THERMACORK EXPANDED CORK GRANULES

TECHNICAL FEATURES

Airborne Sound Insulation: Rw (C;Ctr) = 51 (-2;-6) dB
Density: 60 to 70 kg/m3
Thermal conductivity: λ = 0.040 W / m ° C
Economic and easy to apply



ENVIRONMENTAL FEATURES

100% recycling of pre and post-consumer waste
(no virgin materials)



PRODUCT DIMENSIONS

Granules size: 0-3; 3-5; 3-10; 3-15 mm
(possible other calibers)



PACKAGING


250 lt Big-Bag



RECOMMENDATIONS FOR APPLICATION

Fill the cavity between double brick walls with ThermaCork Granules.

DECORATIVE RUSTIC BOARD



SOLUTION DESCRIPTION

Decorative boards of ThermaCork Facade, presenting a cork natural look.



TECHNICAL FEATURES

FACADE GRADE THERMACORK

Density: 10lb/ft3
Thermal conductivity: R 3.4/inch

Optimal behaviour in large temperature range (-180 ° C to 120 ° C)
Excellent soundproofing


ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality


PRODUCT DIMENSIONS

500: 500 x 500 mm x 15mm
Other sizes: Upon Request


RECOMMENDATIONS FOR APPLICATION

Glue boards (adhesive) to the wall.

METAL-STUD WALL AND SLAB DISCONTINUITY



SOLUTION DESCRIPTION

Support the metal-stud partitions with ThermaCork to disconnect these from the slab to the building structure, promoting sound insulation and reducing vibration transmission.



TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C
Flexural strength: ≥ 130KPa
Compression resistance at 10%: ≥ 100 KPa
Recommended pressure: 0.25 kg / cm2
Limit of elasticity: 1x104 kg/m2
Excellent soundproofing
wall support



ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



RECOMMENDATIONS FOR APPLICATION

Apply the strips of ThermaCork over the clean slab for later placement of partition walls.

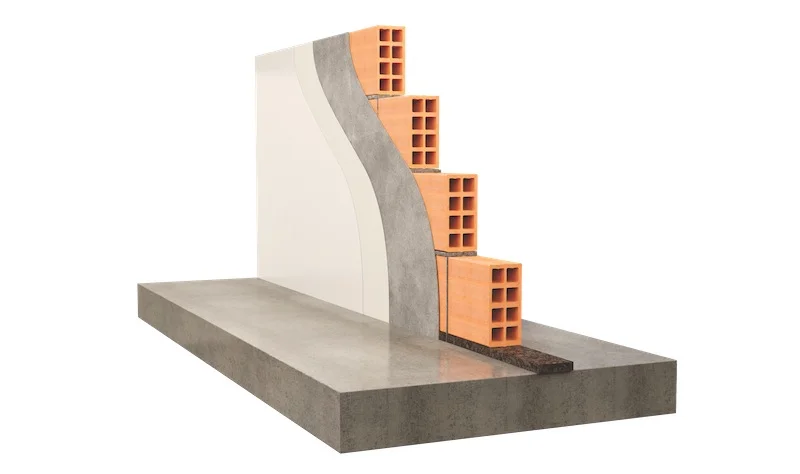

MASONRY WALL AND SLAB DISCONTINUITY



SOLUTION DESCRIPTION

Support the masonry wall partitions with ThermaCork to disconnect these from the slab to the building structure, promoting sound insulation and reducing vibration transmission



THERMACORK USED WITH MASONRY WALL AND SLAB DISCONTINUITY

TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C
Flexural strength: ≥ 130KPa
Compression resistance at 10%: ≥ 100 KPa
Recommended pressure: 0.25 kg / cm2
Limit of elasticity: 1x104 kg/m2
Excellent soundproofing
wall support



ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



RECOMMENDATIONS FOR APPLICATION

Apply the strips of ThermaCork over the clean slab for later placement of partition walls.
