Ceilings

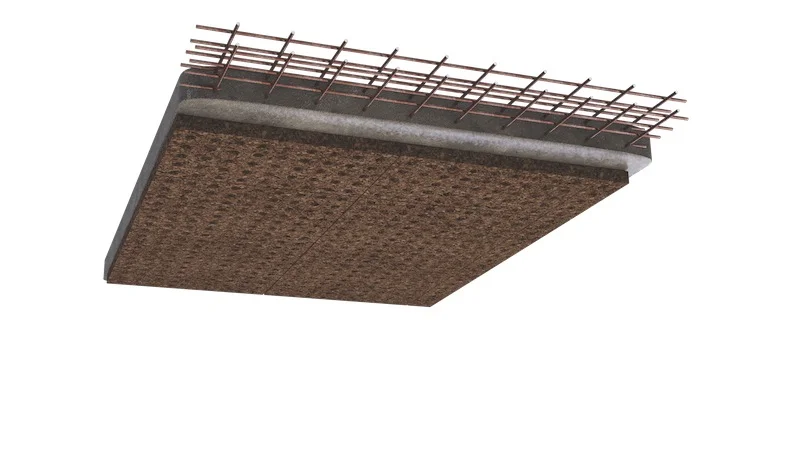

FORMWORK INSULATION
SOLUTION DESCRIPTION
Thermal and acoustic insulation of structural slabs with ThermaCork acting simultaneously as insulation against airborne noises and reducing thermal losses.
TECHNICAL FEATURES
STANDARD GRADE THERMACORK
Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C
Excellent dimensional stability
Fire Resistance: Euroclasse E
ENVIRONMENTAL FEATURES
- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality
RECOMMENDATIONS FOR APPLICATION
Apply the boards of ThermaCork over the formwork and before the steel reinforcement bars (rebars) and concrete pouring.
ACOUSTIC FALSE CEILING
SOLUTION DESCRIPTION
Sound absorption and sound correction of false ceilings, with Corkoco, ThermaCork and e Coco fibers, above ceiling system.
TECHNICAL FEATURES
Excellent acoustic performance
Airborne Sound Insulation Index: Rw = 58 dB
Thermal conductivity: λ = 0,043 a 0,045 W/m°C
Humidity Resistant - wide diffusion
ENVIRONMENTAL FEATURES
Recovery and utilization of waste coconut shell
Odorless
Rot resistant
Mold resistant
PRODUCT DIMENSIONS
Corkoco 1+1 | cork 20/coco 20
Corkoco 2A + 1C | cork 10/coco 20/cork 10
Corkoco 2C+ 1A | coco 10/cork 20/ coco 10
Dimensions: 1.000 x 500 x 40 mm
RECOMMENDATIONS FOR APPLICATION
Apply Corkoco boards over the false ceiling system leaving an aprox 350 mm air-cavity.
Other Applications

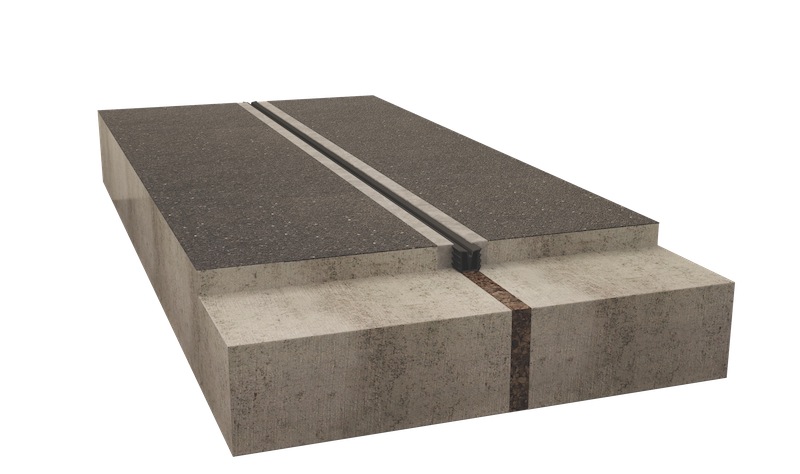

EXPANSION JOINTS
SOLUTION DESCRIPTION
Expansion joints are used in demanding concrete constructions neutralizing expansion and contraction, preventing cracks and burst concrete.
TECHNICAL FEATURES
Meets ASTM D 1752/84 Type II standard.
Compression: 50% of thickness with loads from 0.34 to 10.35MPa.
Recovery: 90% of original thickness at 50% compression.
Extrusion: 6.35 mm (max.) expansion when subjected to 50% compression.
No disintegration in boiling water.
No disintegration in HCl.
ENVIRONMENTAL FEATURES
100% natural and additive-free industrial process.
Excellent durability without requiring maintenance.
Carbon sink.
Low embodied energy.
No emission of compounds harmful to indoor air quality.
PRODUCT LINES
Standard size: 1000 x 500 mm x [12,5 ; 15 ; 20 ; 25 ; 50mm].
Density: 170/190 Kg/m3.
RECOMMENDATIONS FOR APPLICATION
Apply ThermaCork in expansion joints.

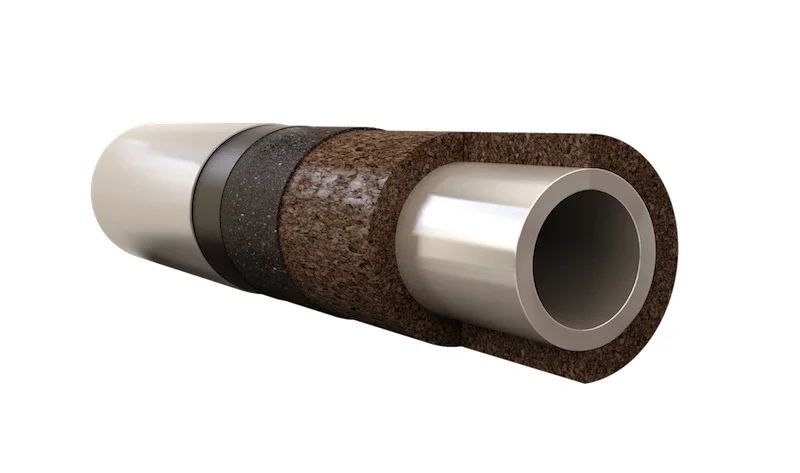

PIPE SECTION
SOLUTION DESCRIPTION
Thermal and acoustic insulation of pipes with ThermaCork pipe-section.
TECHNICAL FEATURES
Density: 110 to 120 kg/m3
Thermal conductivity: λ = 0,037 to 0,040 W/m°C
Excellent thermal lag
Excellent soundproofing
Optimal behaviour in large temperature range: -180° a 120°C
Bending Resistance: ≥ 1,8x104 kg/m2
Compression resistance at 10%: ≥ 100 KPa
Fire Resistance: Euroclass E
ENVIRONMENTAL FEATURES
- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality
PRODUCT DIMENSIONS
Thicknesses and diameters specified according to project.
RECOMMENDATIONS FOR APPLICATION
Place ThermaCork pipe-sections over the pipes for instance water system or solar thermal system. Banding recommended.

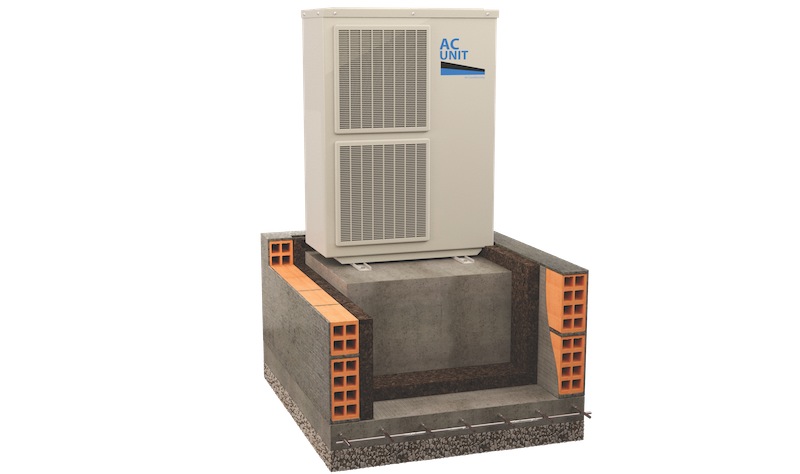

HVAC VIBRATION CONTROL
SOLUTION DESCRIPTION
Reduce or eliminate the transmission of vibrations and consequent noise to the building in which it is installed and the neighbouring buildings. All machines should be insulated.
TECHNICAL FEATURES
Standard density: 110 to 120 kg/m3 ; Thermal conductivity: λ = 0.037 to 0.040 W/m°C.
High density: 170 to 190 kg/m3 ; Thermal conductivity: λ = 0.043 W/m°C.
Excellent thermal lag.
Excellent acoustic insulation.
Optimal behaviour in large temperature range: -180° a 120°C
Does not absorb water by capillary action.
Fire resistance: EuroClass E.
ENVIRONMENTAL FEATURES
- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality
PRODUCT DIMENSIONS
Standard: 1000x500x [10 a 320mm]
HD: 170/190 Kg/m3: 1000x500x [25; 50; 75; 100mm]

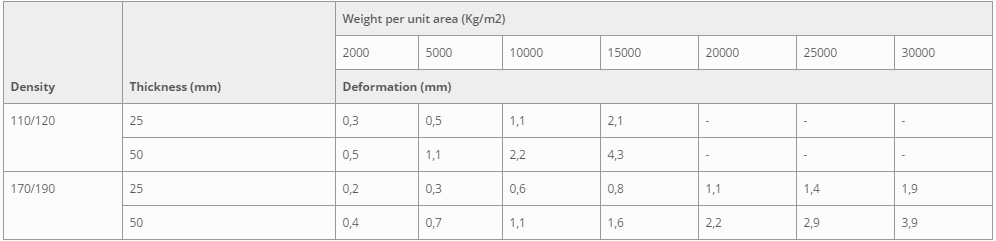

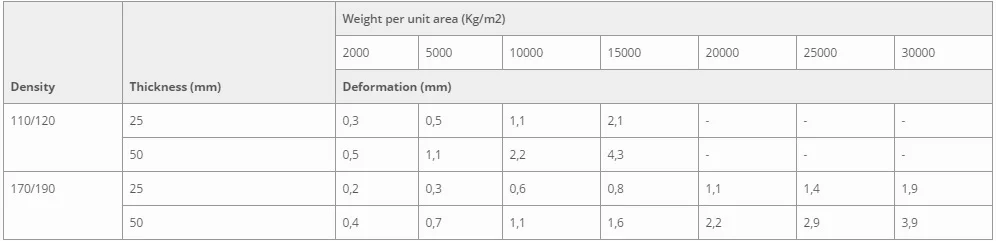

COMPRESSION

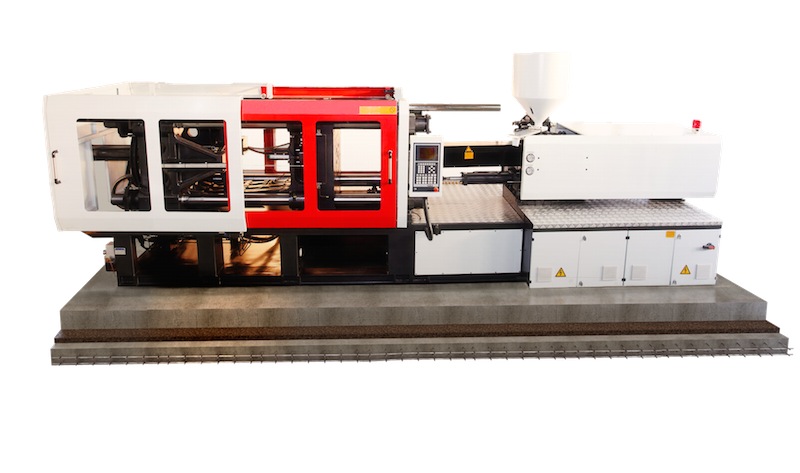

HEAVY MACHINERY VIBRATION CONTROL
SOLUTION DESCRIPTION
Reduce or eliminate the transmission of vibrations and consequent noise to the building in which it is installed and the neighbouring buildings. All machines should be insulated.
TECHNICAL FEATURES
Standard density: 110 to 120 kg/m3 ; Thermal conductivity: λ = 0.037 to 0.040 W/m°C.
High density: 170 to 190 kg/m3 ; Thermal conductivity: λ = 0.043 W/m°C.
Excellent thermal lag.
Excellent acoustic insulation.
Optimal behaviour in large temperature range: -180° a 120°C
Does not absorb water by capillary action.
Fire resistance: EuroClass E.
ENVIRONMENTAL FEATURES
- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality
PRODUCT DIMENSIONS
Standard: 1000x500x [10 a 320mm]
HD: 170/190 Kg/m3: 1000x500x [25; 50; 75; 100mm]
COMPRESSION

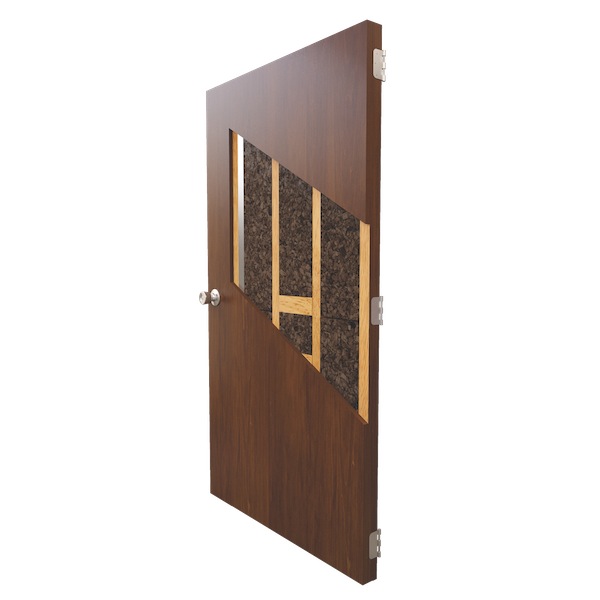

DOOR CORE INSULATION
SOLUTION DESCRIPTION
Fill the core of the doors with ThermaCork to ensure thermal and acoustics insulation, while having fire retardant properties.
TECHNICAL FEATURES
Density: 110 to 120 kg/m3
Thermal conductivity: λ = 0,037 to 0,040 W/m°C
Bending Resistance: ≥ 1,8x104 kg/m2
Compression resistance at 10%: ≥ 100 KPa
Excellent dimensional stability
Fire resistant properties
ENVIRONMENTAL FEATURES
- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality
PRODUCT DIMENSIONS
Standard: 1000x500x [10 to 320mm]
Other sizes: Upon Request
RECOMMENDATIONS FOR APPLICATION
As per door manufacturer.

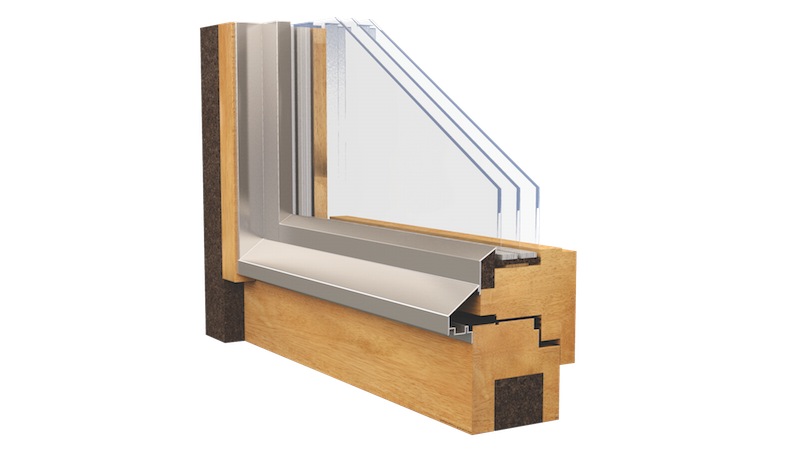

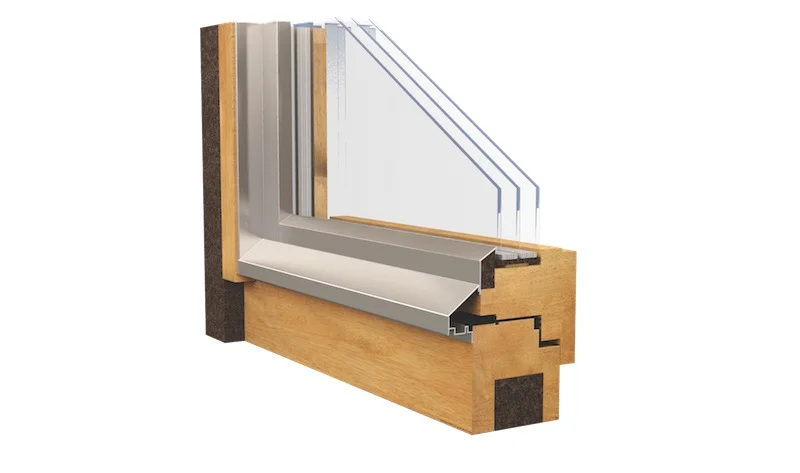

DECOUPLING LAYER FOR WINDOW FRAMES AND CORE
SOLUTION DESCRIPTION
Decoupling layer for window frames with ThermaCork ensuring acoustic insulation and providing a thermal barrier to the window frame system. Also possible to apply as window frame core.
TECHNICAL FEATURES
Standard density: 110 to 120 kg/m3 ; Thermal conductivity: λ = 0.037 to 0.040 W/m°C.
Medium density: 140 to 160 kg/m3 ; Thermal conductivity: λ = 0.042 W/m°C.
Bending Resistance: ≥ 1,8x104 kg/m2
Compression resistance at 10%: ≥ 100 KPa
Excellent dimensional stability
Fire Resistance: Euroclasse E
ENVIRONMENTAL FEATURES
- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality
PRODUCT DIMENSIONS
Standard: 1000x500x [10 to 320mm]
140/160 Kg/m3: 1000x500x [10 a 240mm]
RECOMMENDATIONS FOR APPLICATION
As per window manufacturer.
